PLAN: 'WORKERS HOMES BOARD BRICK HOUSE, W.H.T. 8C', FOR LOT 420 LUTH AVE, DAGLISH 1947
1945Overview

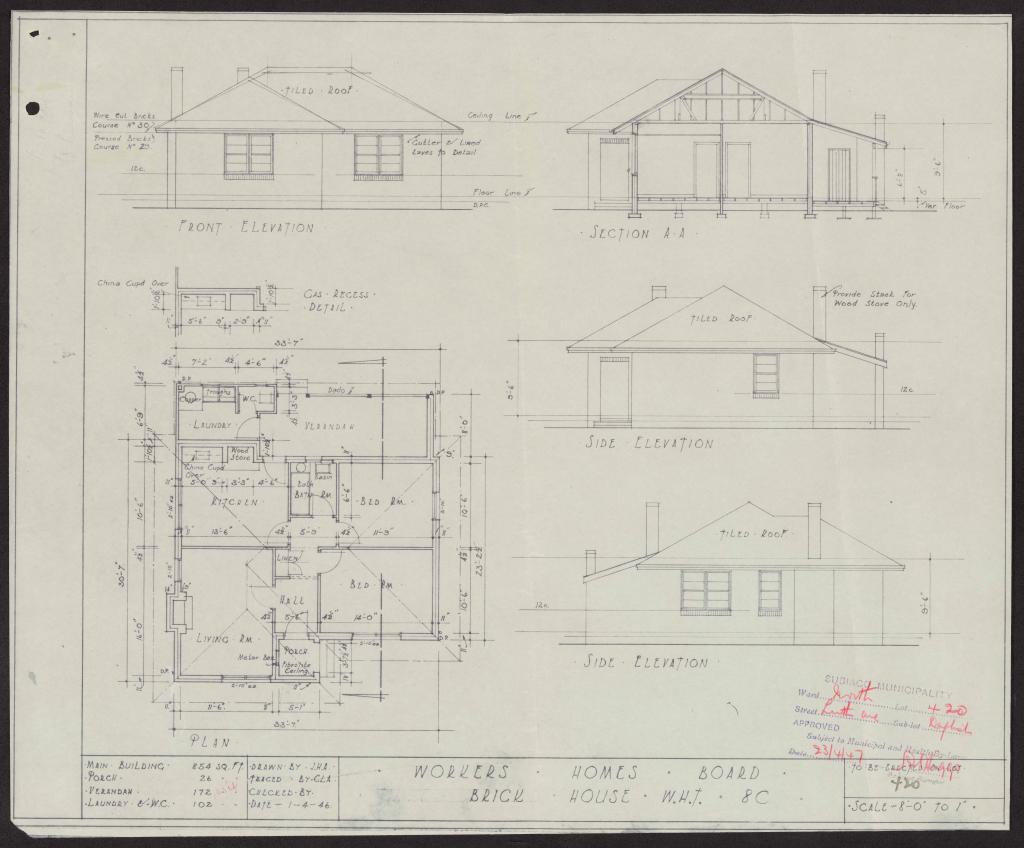

Black ink plan drawing on beige paper. The plan includes a Front Elevation, Plan, Section, and two side elevations.
At the bottom is the sizes of the rooms. They are listed as Main Building 854 SQ FT (Square Feet), Front Porch 26, Verandah 172 and Laundry & WC (Water Closet/Toilet) 102.
The second box includes the architects initials: 'Drawn By J.H.A, Traced by CLA'. It is dated 1.4.46
The title at the bottom reads: 'Workers Homes Board Brick House W.H.T 8C'.
The scale is 8'(feet) to 1 inch.
The plan has been stamped with a blue 'Subiaco Municipality' stamp and in red there is written:
Ward 'North' Lot '420'
Street 'Luth Ave' Sub-Lot 'Daglish'
Signed and dated 23/4/47
