PLAN: 'WORKERS HOMES BOARD BRICK HOUSE, W.H.T. TYPE 56/DR', FOR LOT 421 LUTH AVE, DAGLISH 1947
1945Overview

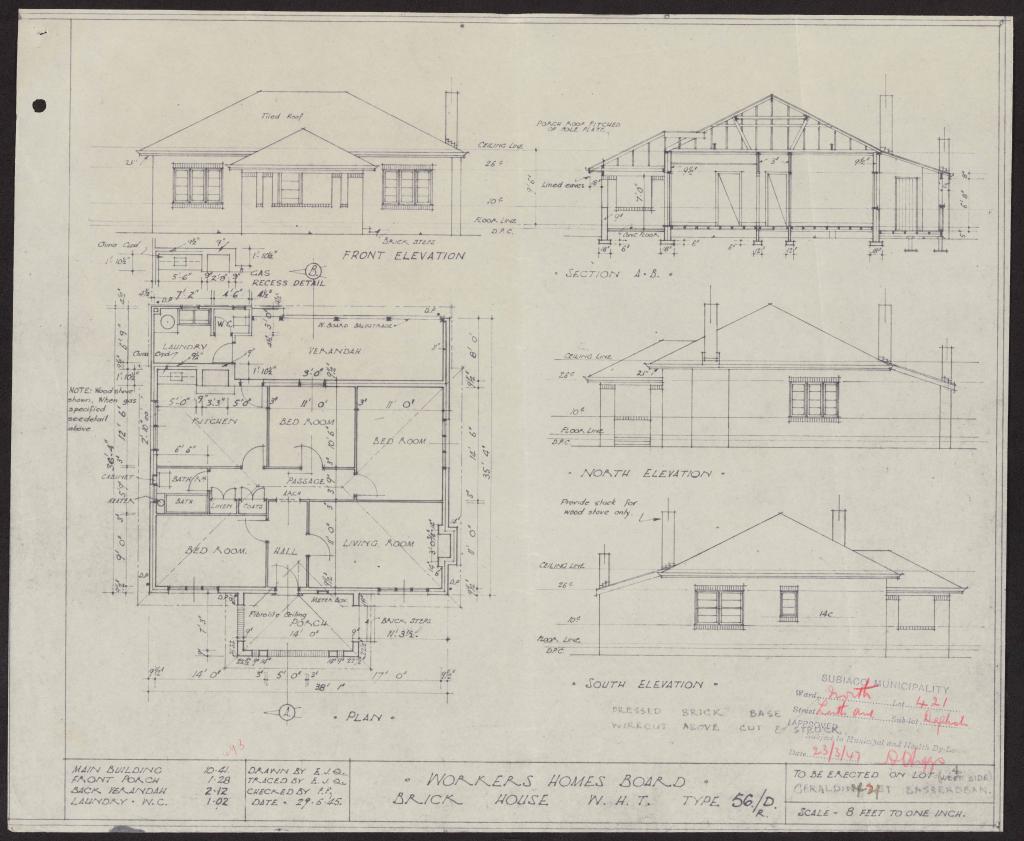

Black ink plan drawing on beige paper. The plan includes a Front Elevation, Plan, Section, and two side elevations.
At the bottom is the sizes of the rooms. They are listed as Main Building 1041 SQ FT (Square Feet), Front Porch 128, Back Verandah 212 and Laundry & WC (Water Closet/Toilet) 102.
The second box includes the architects initals: 'Drawn By E.J.Q, Traced by E.J.Q'. It is dated 29.6.5
The title at the bottom reads: 'Workers Homes Board Brick House W.H.T Type 56/D'.
The scale is 8'(feet) to 1 inch.
The plan has been stamped with a blue 'Subiaco Municipality' stamp and in red there is written:
Ward 'North' Lot '421'
Street 'Luth Ave' Sub-Lot 'Daglish'
Signed and dated 23/4/47
Historical information
Found in TG during 2023 renovations
